Hot Bar Soldering Machine Pulse Heat Thermode Head Solder Welding Machine
Feature:

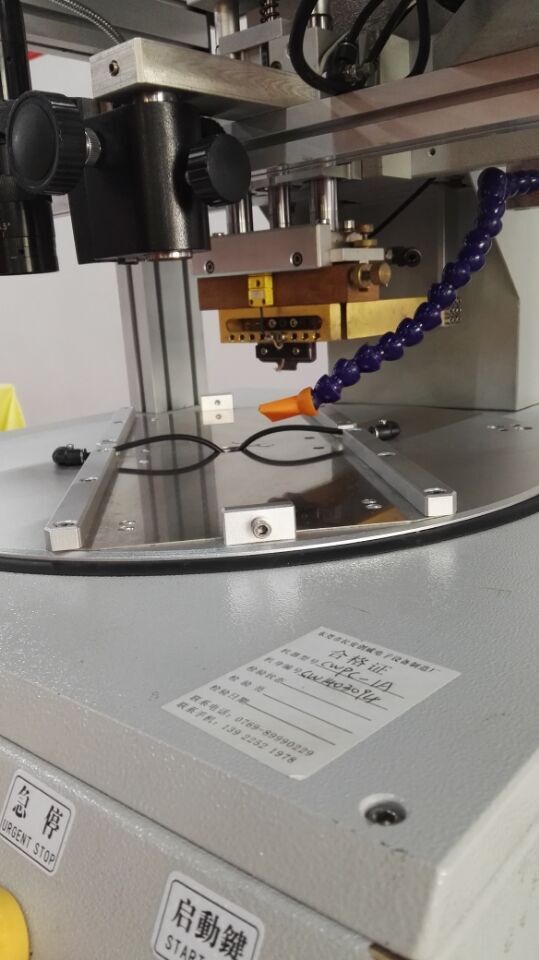

Pulse-Heated Soldering Machine with Pneumatic Rotary Turntable CWPC-1A
1. Extremely short cycle time with rotary table design. Product loading and unloading can be done during the heat sealing process
2. High quality heat seal application up to 0.25mm pitch
3. Pneumatic bonding head provide up to 3,900N force
4. Digital programmable pressure control with LCD display
5. Closed loop PID temperature control with visible LED display
6. Bonding cycle is triggered by a real time pressure sensor
7. Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
8. Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components
9. Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
10. Full microprocessor logic control
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!
Specification:
welding machine
1. Accurate Tin press,not drag
2. Accurate heat
3. Fine-pitch position
4. Digital program pressure control
| Model | CWPC-1A |
| Working area (mm) | 200*260 |
| Air pressing (MPa) | 0.45~0.7 |
| Size (MM) | 620*690*570 |
| Weight (Kg) | 95 |
| Guarantee | 1 Year |
| Delivery | 1 Day |
| Min. Order | 1 Set |
| Ability | 1000 Sets |
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. Electronic component won't short circuit
Our Advantage :
1. CWVC-1 Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying
CE certificate:
Best choice for you:
1. Engineers available to service machinery oversea. pcb router machine
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery. pcb router machine
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3. Effective customer service. pcb router machine
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4. One year warranty for the machines except accessories. pcb router machine
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:
PCB industry to become the world's leading solution providers PCB separator. pcb
